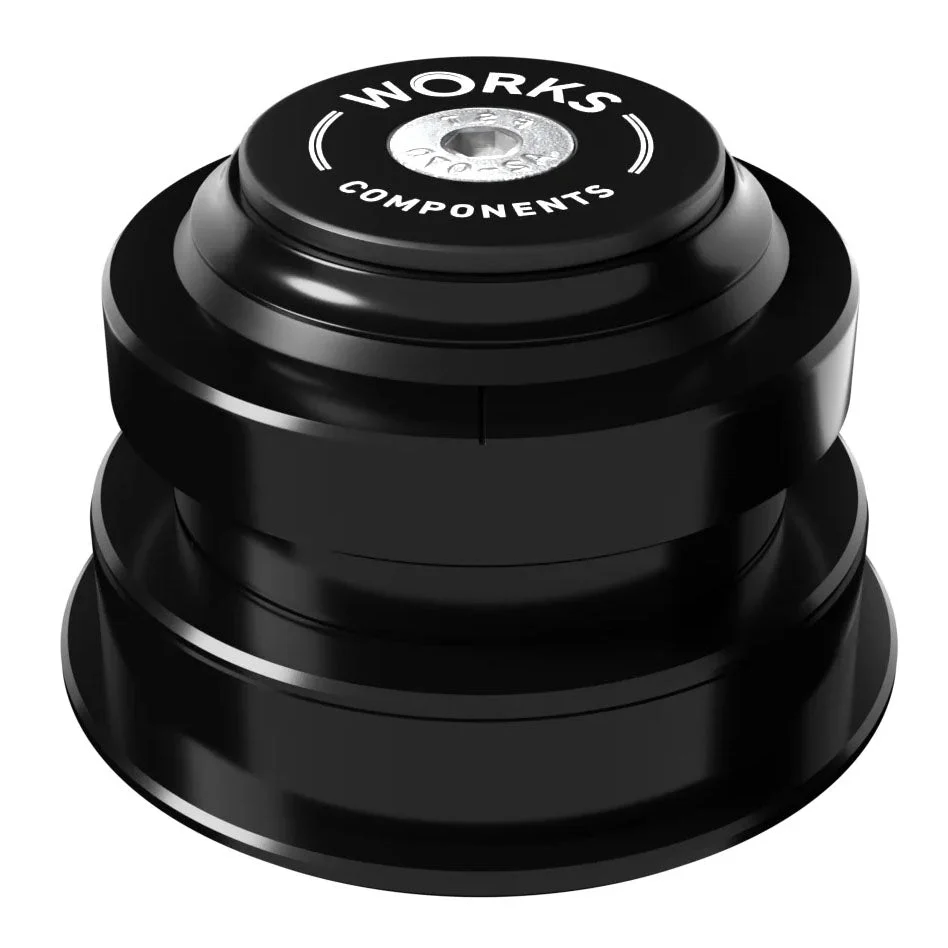

Works Components 1° Angle Headset - EC44|ZS56 - 120-129mm HT

Works Components 1.0° angle-adjust headset with EC44 upper and ZS56 lower cups for tapered steerer tubes and head tubes between 120mm and 129mm in length. CNC-machined in the UK from 6082-T6 aluminum with sealed bearings. Allows + or - geometry adjustment. Fits frames with 44mm upper and 56mm lower internal head tubes. Tapered steerer tube compatible (1 1/8" to 1 1/2") or with 1 1/8” fork with a reducer crown race. Ideal for trail, enduro, and downhill bikes.

Works Components Angled Headsets Explained

• Adjusts the bike’s head tube angle by 1.0 degree
• 1.0 degree headset will lengthen a bikes wheelbase by around 10mm, and lower the bottom bracket by around 2mm
• Due to angled nature, headsets are head tube length specific. This headset is designed for 120mm - 129mm head tubes.
• Precision CNC-machined from 6082-T6 aluminum and anodized in the UK
• Includes top-cap, star nut, bearings and crown race

Model	1.0 Degree Angle Headset
S.H.I.S.	EC44/28.6 / ZS56/40
Stack	16mm/2.5mm
Angle	1.0°
Head tube Length	120-129mm
Head tube Internal Diameter	Upper: 44mm (EC44) / Lower: 56mm (ZS56)
Cup Insertion Depth	Upper: 9mm / Lower: 11.5mm
Upper Bearing	41mm OD, 45 x 45° AC sealed bearing
Lower Bearing	52mm OD, 45 x 45° AC sealed bearing
Color	Black
